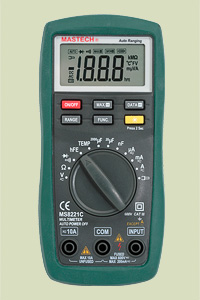

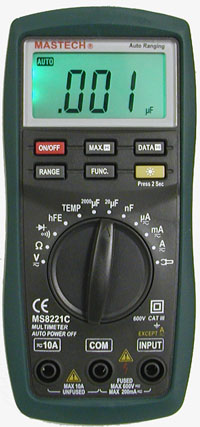

MS8221C |
AUTORANGE DIGITAL MULTIMETERS |
|
FEATURES |
• |
Designed to international safety standard IEC 1010-1 CAT III 600V |
• |
Secondary injection molding case |
• |
Auto range |
• |
Data hold |
• |
Maximum value measurement |
• |
Back light |
• |
Auto power off |
• |
Display: 1999 counts, digit is 16mm high |
• |
DC voltage: 200m/2/20/200/600V±0.7% |
• |
AC voltage: 200m/2/20/200/600V±0.8% |
• |
DC current: 200µ/2000µ/20m/200mA±1.2%, 2/10A±2.0% |
• |
AC current: 200µ/2000µ/20m/200mA±1.5%, 2/10A±3.0% |
• |
DC current (with clamp, optional): 200/2000A(0.1mV/0.1A)±1.2% |
• |
AC current (with clamp, optional): 200/2000A(0.1mV/0.1A)±1.5% |
• |
Resistance: 200/2k/20k/200k/2MΩ±1.2%, 20MΩ±2.0% |
• |
Temperature: -20°C ~ 1000°C±3.0%, 0°F ~ 1800°F±3.0% |
• |
Capacitance: 20n/200n/2µ/20µ/200µ/1000µF±4.0% |
• |
Continuity test |
• |
Diode test |
• |
Transistor hFE test |
• |
Power: 1.5V (AAA) x 3 |
• |
Size: 158mm x 74mm x 31mm |
• |
Weight: Approx. 220g (including battery) |
|
